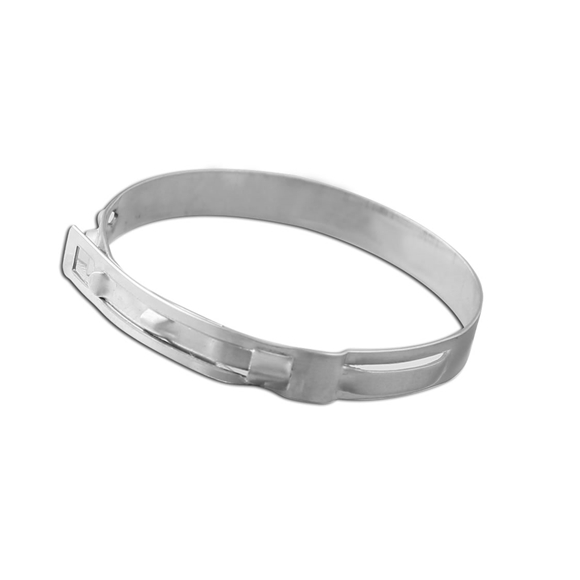

Low Profile Clamps

Dongbo low profile clamps are widely use for general connection between hose and hard pipe, such as fuel filter, automotive hose, pump, cooling hose, CV connector, hydraulic system, mechanical equipment, etc.

Highlights

  • Reusability
  • Stepless over 360°
  • Low installed height
  • Load retaining hooks
  • Burr-free strip edges
  • ISO
Download Datasheet Add To Cart

Specifications

Name Low Profile Clamps
Material Stainless steel 304, others available
Color Silver
Clamp Size Range 10.5 – 120.5 mm
Band Width x Thickness 7 x 0.5 mm
7 x 0.6 mm
9 x 0.5 mm
9 x 0.6 mm
10 x 0.8 mm
Common Packing Inner polybag, outer carton
